Facilitating testing of Diesel, Gasolene,CNG engines widely used in Automotive, Marine, Industrial & Combat Engines for Production, Endurance & Overhauling application.

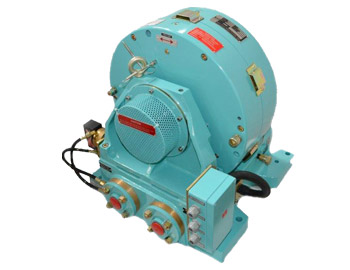

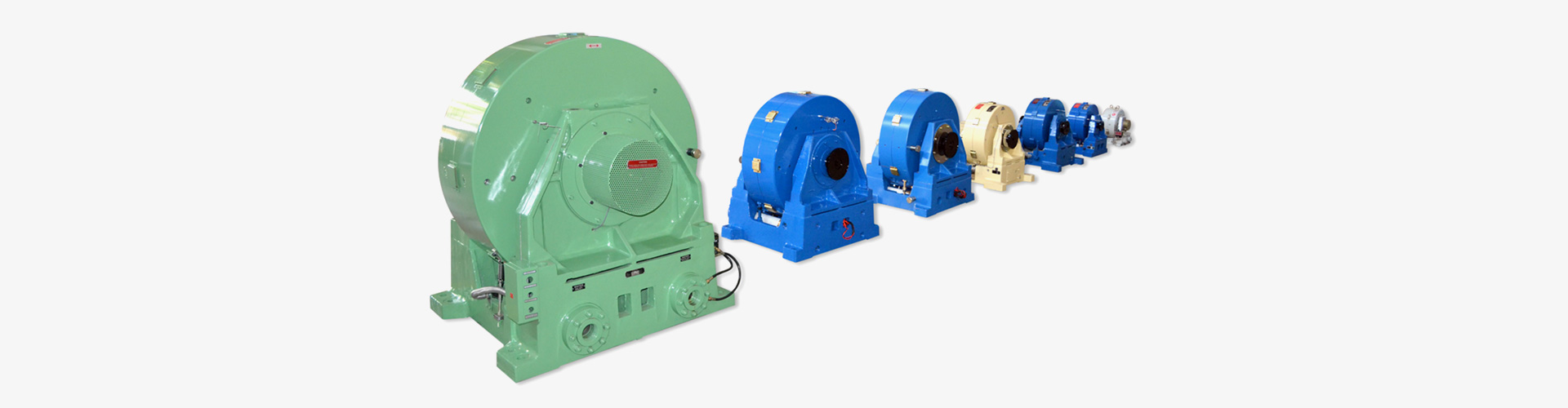

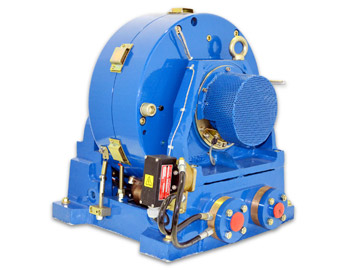

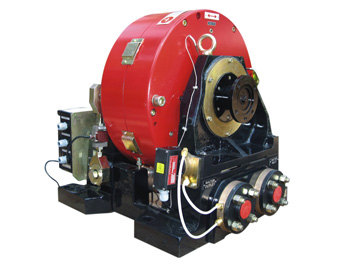

Eddy Current Dynamometers
Standard Features
- Bi-directional Operation.
- Low Moment of Inertia.
- Twin Energizing Coils.
- Electro-less Nickel Plating for cooling passages in Loss Plates.
- CE Marked.
- Use of Copper Coil.
- Low Current.
- Radial Air Flow Cooling Loss Plate.
- Descaling Unit Available.
- Accuracy within +/- 0.25%.
Safety Features
- Loss Plate Temperature Sensor.
- Pressure Switch for Water Supply.
Specifications
| Model | Max Power (kW) | Max Torque (Nm) | Max Speed (RPM) | |
|---|---|---|---|---|
| Standard | High Speed | |||
| SE / AG 5 | 5 | 30 | 10000 | 12000 |
| SE / AG 10 | 10 | 50 | 10000 | 12000 |
| SE / AG 20 | 20 | 80 | 10000 | 12000 |
| SE / AG 30 | 30 | 95 | 12000 | 14000 |
| SE / AG 80 | 80 | 160 | 9000 | 14000 |
| SE / AG 150 | 150 | 500 | 8000 | 12000 |
| SE / AG 200 | 200 | 800 | 6000 | 8000 |
| SE / AG 250 | 250 | 1200 | 6000 | 8000 |
| SE / AG 350 | 350 | 1600 | 6000 | 8000 |
| SE / AG 400 | 400 | 2000 | 4500 | 8000 |
| SE / AG 500 | 500 | 3000 | 4500 | 7500 |
| SE / AG 720 | 720 | 4500 | 3750 | 4500 |
