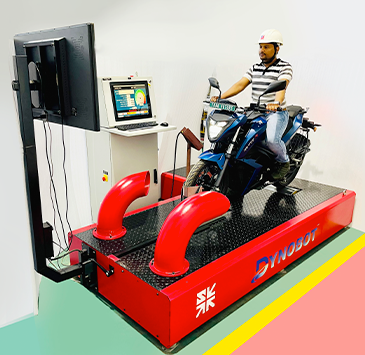

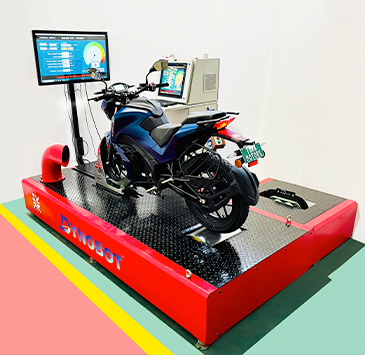

Dynobot is the perfect choice to promote your vehicles via Demonstrations in Showrooms, Experience Centres, Tuning Workshops, Reception area in Factory Premises, Exhibitions, Malls, Airports, Service Centers, Performance Verification Centers etc, where potential Buyers/Users can experience the ride themselves.
*Enhanced Optional Features: CAN interface, Semi RLS, AIS tests like Range, Energy Consumption & Power Test
| Max Mechanical Rig Speed | 100 Kmph |
| Vehicle Tractive Force Max Limit | 1300 N (From 40 to 60 kmph) |
| Max Vehicle Kerb Weight | 200 kg |
| Flexible display | 42” LED TV with Graphics Card & Stand |
| Wheelbase Range | 1100 mm (min) & 1500 mm (max) |
| Restraint Feature | Ratchet Type Restraint Belts |
| Vehicle Wheel Outer Diameter | 350 mm (min) to 600 mm (max) |
| Loading | Modern Infinite Variable, Air Cooled Power Absorber. No Water or Hydraulics. |
| Controller Unit | Computer Controlled, 19” Panel Monitor with i5 Intel Processor, 8 GB DDR4 RAM, 1 TB Hard Disk, Wireless Keyboard & Mouse |
| Load Parameters | Constant Speed, Constant Torque, Manual Absorber Loading Simulation Modes:- – 0 to 10, 10 to 20, 20 to 30, 30 to 40, 40 to 50 (kmph) Acceleration Times – 0 to Max Speed (80 Kmph) Passing Time – 0 to 100 m Acceleration Time – Acceleration using Road Drag Constants |
| Measurement Accuracy | Torque ± 0.25% FS, Speed ± 0.1% FS |
| Power Requirement | 1Ph. 230 V (± 5 %), 50 Hz |
| Ramp | Common for Vehicle Entry / Exit |
| Mounting | Level Mounts for placement on Concrete Floor |
| Vehicle Cooling | Centrifugal Blower (2X 1200 CMH) |
| Operating Range | Environmental temperatures (0°C to + 50° C) |
| Recommended for Installation | Ambient Temperature ≤ 25°C ,Dust Proof Environment |
| Options | Inkjet/Laserjet Printer Interface with Vehicle Controller (CAN)* Vehicle Cooling Blower (17000 CMH) |

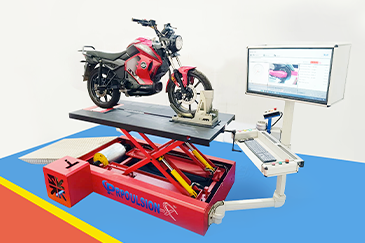

Introducing the Dynobot Superlift, the ultimate solution for professional Mechanics, Garages, Tuning Workshops,
Service Centres,Vehicle showrooms etc, seeking to enhance their diagnostic capabilities and provide a secure and controlled environment for testing motorcycles and scooters.
This innovative product features a unique combination of roller bench and hydraulic lift, allowing easy access to the underside of the vehicle for diagnostics and repairs. “SĀRVADĀ” (An acronym for “SAJ Assisted Real-time Vehicle Analysis & Diagnostic Application”, incidentally in local dialect it means “Always”) is a Test Software for Vehicle Drivability Test also includes a checklist facilitating diagnosis of different Inspection parameters related to the Vehicle.
COMPANY NAME: SAJ TEST PLANT PVT LTD
LOCATION: “AUTOMOTIVE TESTING EXPO INDIA, 2025” at Halls 2 and 3, CTC Complex, Chennai, INDIA, Visit us at Booth # 4074 in HALL 2&3
REGISTRATION LINK: https://www.testingexpo-india.com/
DATE: on 8th, 9th , 10th April 2025.
